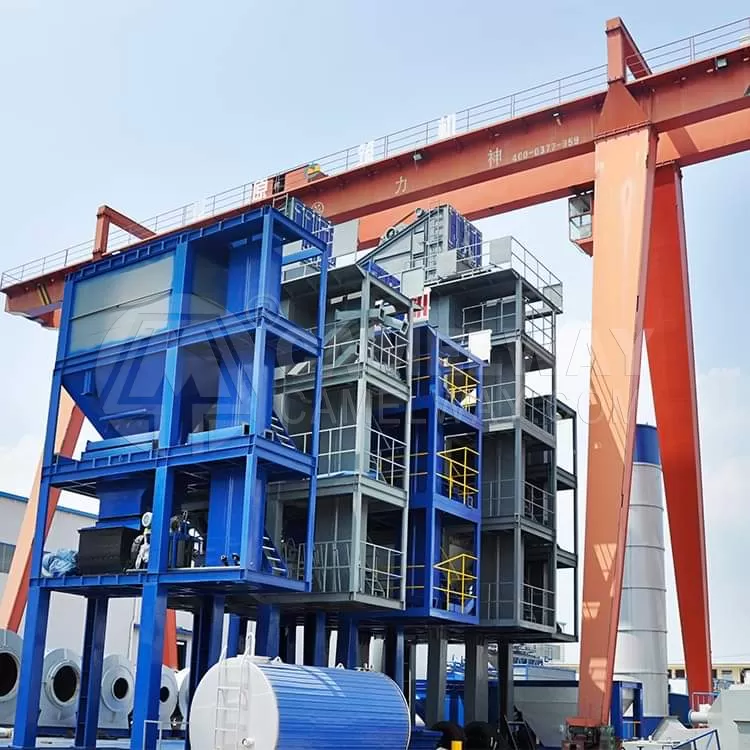

Asphalt mixing plant, also known as asphalt concrete mixing plant, used for batch production of asphalt concrete complete set of equipment, can produce asphalt mixture, modified asphalt mixture, color asphalt mixture, is the construction of highways, grade highways, municipal roads, airports, ports necessary equipment.
Here are specification of some types:
Type | LB1000 | LB1500 | LB2000 | LB2500 | LB3000 | LB4000 | |
Theoretical output | 80t/h | 120t/h | 160 t/h | 200 t/h | 240 t/h | 320 t/h | |
Cold aggregate bin | 4bin×9m3 | 4bin×9m3 | 5bin×11m3 | 5bin×11m3 | 5bin×11m3 | 5仓×13m3 | |
Drying roller | 1.5m×6m | 1.8m×7m | 2.2m×8m | 2.35m×9m | 2.5m×10m | 2.8m×11m | |
Bag-type dust collector | CNM357 | CNM476 | CNM654 | CNM832 | CNM1012 | CNM1308 | |
vibrating screen | 4 tier | 4 tier | 5 tier | 5 tier | 5 tier | 5 tier | |
Hot aggregate bin | 26t | 26t | 5/40t | 40t | 80t | 100t | |
Mixing pot capacity | 1000kg | 1500kg | 2000kg | 2500kg | 3000kg | 4000kg | |
Mixing cycle | 45s | 45s | 45s | 45s | 45s | 45s | |
Ore tank capacity | 26+36t | 26+36t | 30+43t | 30+43t | 50+35t | 60+35t | |
Asphalt tank capacity | 50000L | 50000L | 2×50000L | 2×50000L | 3×50000L | 4×50000L | |
Thermal oil furnace | 300,000kcol/h | 300,000kcol/h | 500,000kcol/h | 500,000kcol/h | 800,000kcol/h | 1,000,000kcol/h | |
Finished product tank capacity | 90t | 90t | 110t | 110t | 200t | 200t | |
Weghting security | Aggregate | ≤±0.4% | ≤±0.4% | ≤±0.4% | ≤±0.4% | ≤±0.4% | ≤±0.4% |
Powder | ≤±0.3% | ≤±0.3% | ≤±0.3% | ≤±0.3% | ≤±0.3% | ≤±0.3% | |
Asphalt | ≤±0.2% | ≤±0.2% | ≤±0.2% | ≤±0.2% | ≤±0.2% | ≤±0.2% | |
Total power | 230kw | 320kw | 400kw | 530kw | 720kw | 820kw | |
Contral system | full automatic control | ||||||
