Small Portable Asphalt Mixing Plant

Small Portable Asphalt Mixing Plant

We Camelway Machinery Design, Manufacture and Sell Small Portable Asphalt Mixing Plant and Related Construction Machines with competitive prices and guaranteed quality in Africa. We have customer stories across the total Africa, If you have any questions about this equipment, please don't hesitate to contact us!

+8617839193601, +8615617584955

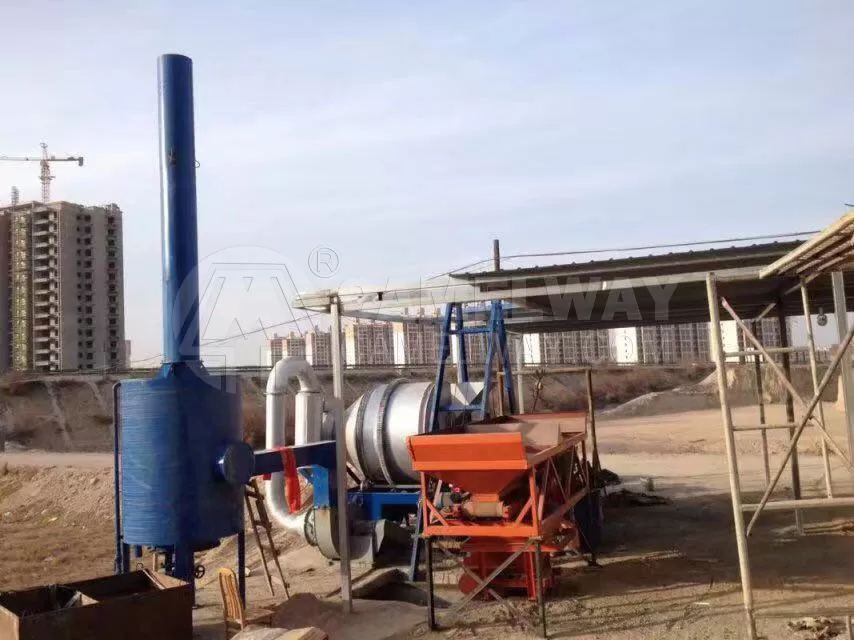

Small Portable Asphalt Mixing Plant is a portable facility ideal for small road constructions projects or for road repair, capacity from 10 to 80 tons per hour*, it can be moved from one construction site to another simply. It consist of cold aggregate supplying device, cold aggregate elevator, aggregate drying system, asphalt supplying system, dust remove device, batch mixer, etc. This plant used the tiled structure, do not have a mix tower.

Asphalt production requires mobility. The ability to buy an small mobile asphalt mxing plant and use it directly at the facility greatly reduces the cost of work. The capacity range of the QLB series mobile asphalt concrete plant is from 10 to 80 tons per hour, which is enough for small construction or work on a construction site. The mobile plant comes with a mixer with a hopper mounted on the chassis, a feed system, and a power system. It is also possible to purchase a set of silos for feedstock both in a stationary form and on a chassis. The dimensions of the plant make it easy to transport it both in the form of a trailer and in the back of a conventional on-board vehicle.

Camelway Machinery offers modern asphalt mixing plants that are fully automated. LB Series Stationary Asphalt Plants and QLB Mobile Mixing Plants and the all-new LBY Series, which are an indispensable tool for companies that produce asphalt mix in road construction.

Camelway's mobile asphalt plants produce varieties of all types of asphalt. A large number of road-building organizations in Africa and around the world use camelway's asphalt plants in the construction of roads, highways, highway routes and communications, which proves the highest quality of asphalt mix.

Technical specifications

ModelQLB-10QLB-15QLB-20QLB-30QLB-40QLB-60QLB-80
Capacity10t/h15t/h20t/h30t/h40t/h60t/h80t/h
Total PowerFuel Oil41.5kW54kW63.5kW104.5kW125kW157.5kW200kW
Fuel Coal57.5kW75kW86.5kW127.5kW169kW205kW276kW
Aggregate Bin2.3m³*32.3m³*32.3m³*35m³*35m³*35m³*35m³*4
Finished Asphalt Storage Bin2t5t5t9t9t9t20t
Asphalt Temperature120-180°C (adjustable)
Fuel ConsumptionFuel Oil: 5-7.5 kg/t; Fuel Coal: 13-15 kg/t
Optional ComponentsWater dust collector, Baghouse dust collector, Control room, Bitumen heating tank

for applications need asphalt capacity below 10 ton per hour, we also have other solutions, please contact us for detail.
