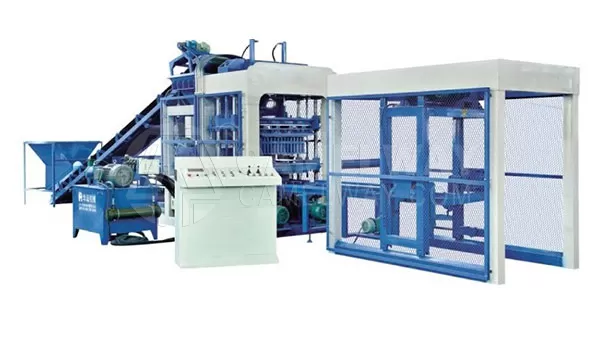

QT6-15 Automatic Vibrating Press

QT6-15 Automatic Vibrating Press

We Camelway Machinery Design, Manufacture and Sell QT6-15 Automatic Vibrating Press and Related Construction Machines with competitive prices and guaranteed quality in Africa. We have customer stories across the total Africa, If you have any questions about this equipment, please don't hesitate to contact us!

+8617839193601, +8615617584955

QT6-15 is one of the reliable, proven on the positive side vibrating presses with an automatic control system. The proposed vibrating press is capable of producing both wall products (brick, block, partition blocks), and road products of excellent quality (paving slabs, curbs, landscaping elements).

Characteristics of a vibrating press:

  1. Overall dimensions 3500x1700x2930mm
  2. Molding cycle 15-18 seconds
  3. Pallet size 830x940x25mm (bamboo) 930x940x20mm (plastic)
  4. Vibration Frequency / RPM 55KN / Max.5500 R / Min
  5. Hydraulic Control System
  6. Power 11 kw
  7. Power Consumption 380V
  8. Total weight 6,000 KG

The QT6-15 vibropress for automatic molding of cement hollow blocks is equipped with a computer with a touch screen. The perfect control system allows you to fully automate and intellectualize the production process, including mixing, material feeding and compression molding.

The machine for the automatic formation of cinder blocks is made of heavy-duty structural steel using special welding equipment and welding materials. In this installation, imported engines, sealing elements and hydraulic elements are used. Therefore, it is durable and resistant to shock. That is, our car is stable and reliable.

In addition to the elongated sliding sleeve, four guide columns are used to accurately move the mold. A synchronous top link device is used.

Our cinder block molding machine uses a large hydraulic pressing device. Thus, it can produce heavy bricks with a maximum density of up to 20MPa. Finished products have such advantages as compactness, exact size and shape.
