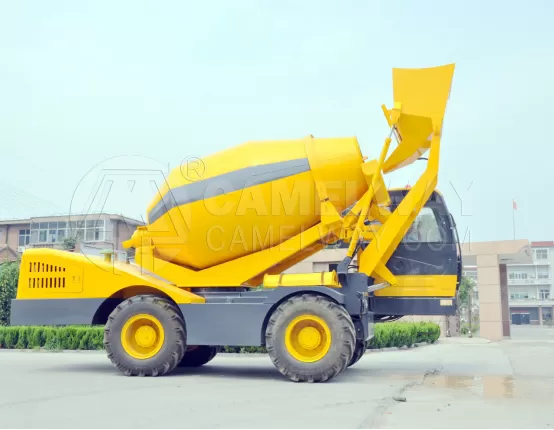

Mobile 4m³ self loading concrete mixer feature combines self-loading,weighting,mixing and discharging,it can maximize and improve the job efficiency and reduce the production cost and time.
High efficiency,
Capacity：12-14cubic meters per hour,
Labor-saving,
4 WD,
Accurate electric weighing system.
The mixing unit is hydraulic slewing 270 degree for high discharge over 1.8m to the four sides of the vehicle.
Loading,weighing,pumping,mixing,delivering and discharge.
Ultimate tank capacity technology. can discharge with different angles,
The clever discharge cone is designed,to provide stronger material sealing capacity and higher filling rate,thus improving the loading capacity of the tank up to 6%.
Loading capacity is larger for the same volume.
The center of gravity is low for the same loading capacity. Swing tank easy discharge to different way.
High-strength wear-resistant application.
Here are some detailed specifications fo that machine:
Name | Item | Specification | |
Weight | 8300 KG | ||
Transmission | Full Hydraulic | ||
4 WD | |||
Brake | Air Brake | ||
Chassis | Off-road | ||
Tread | 1880 | ||
Wheelbase | 2250mm | ||
Loader bucket | capacity | 0.6m3 | |
Control | Hydraulic | ||
Tilt angle | 30% | ||
Speed | High | 0-25KM/H | |
Low | 0-20KM/H | ||
Mini turning radius | 6.5M/R | ||
Tyre model | 16/70-20 | |||
Engine | Type | YUNNEI | ||
Rated Power/RPM | 92KW/2200RPM | |||
Max.Torque/RPM | 460N.M/1400RPM | |||
Cylinder | 4 | |||
Starter | Electric | |||
Cooling type | water cooling | |||
Maxing Drum | Output capacity | 4M3 | ||
Bank Angle | 16 ° | |||
Rotation Angle | 19-21R/min | |||
Chute | Swing Angle | ≥60° | ||
Angle control | Hydraulic | |||
Size | Length: 90cm | |||
Loader | Weighing model | computer control | ||
Concrete Standard | C15.C20.C25 C30 | |||
Accuracy | Cement | ≤±2%/time | ||
Relative Error | ≤±3%/time | |||
water | ≤±1%/time | |||
Additive | ≤±1%/time | |||
Admixture | ≤±2%/time | |||
Loader control | Hydraulic 4 way stick | |||
Hydraulic oil tank | 240L | |||
Water tank | 550L | |||
Over size | 7500*2700*3380mm | |||
