Camelway Machinery manufactures high-technology batching plants for concrete production industry and custom made solutions upon customer’s request. Camelway have been in business for 30 years. Our concrete batching plants, according to customers from all over the world, have proven as successful, reliable and productive.

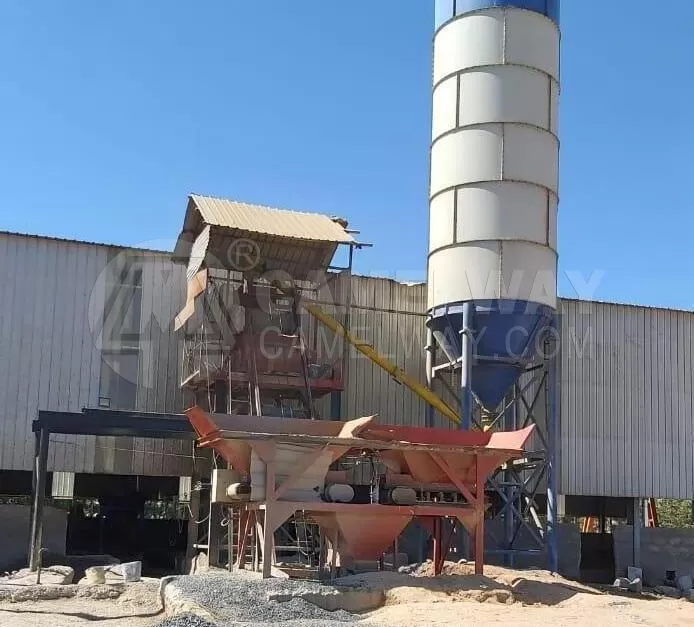

Camelway's Batching Plant for Sale in Zimbabwe
The quality and efficiency of the batching plants that we manufactured have made us a company to be preferred not only in China but also world-wide.
Compact Concrete Plants: HZS50, HZS75
Mini Concrete Plants: HZS25, HZS35,
Large Concrete Plants: HZS90, HZS120, HZS180
Mobile Concrete Plants: YHZS25, YHZS35, YHZS50, YHZS75, YHZS100
Main features
- Suitable for all kinds of concrete
- Mobile – fit in open top container or truck
- Compact Design – minimum space requirements
- One day installation
- Low investment
- Low foundation cost
- Semiautomatic or automatic
| Model | HZS25 | HZS35 | HZS50 | HZS75 | |
| Theoretical production capacity(m³/h) | 25 | 35 | 50 | 75 | |
| Concrete mixer | Type | JS500 | JS750 | JS1000 | JS1500 |
| Power(KW) | 24.75 | 38.6 | 51 | 65.5 | |
| Discharging capacity(L) | 500 | 750 | 1000 | 1500 | |
| Aggregate size(Pebble/Macadam)(mm) | 80/60 | 80/60 | 80/60 | 80/60 | |
| Aggregate Bin volume(m³) | 2/3×3.2 | 2/3/4×7.3 | 2/3/4×8.3 | 2/3/4×12 | |
| Weighing Accuracy | Aggregate (KG) | 1500Kg ±2% | 2200Kg ±2% | 3000Kg ±2% | 4500Kg ±2% |
| Cement(KG) | 300Kg ±1% | 450Kg ±1% | 600Kg ±1% | 1500Kg ±1% | |
| Fly ash(KG) | 400Kg ±1% | 600Kg ±1% | |||
| Water (KG) | 200Kg ±1% | 200Kg ±1% | 400Kg ±1% | 600Kg ±1% | |
| Additive(KG) | 30Kg ±1% | 50Kg ±1% | 50Kg ±1% | ||
| Discharging height(M) | 3.8 m | 3.8 m | 3.8 m | 4.1m | |
| Gross weight(T) | 10 | 15 | 40 | 50 | |
| Entire Plant | Model | HZS60 | HZS90 | HZS120 | HZS180 |
| Capacity (m3/h) | 60 | 90 | 120 | 180 | |
| Standard Discharging Height (mm) | 3800 | 3800 | 4000 | 4000 | |
| Operation Cycle Time (s) | 60 | 60 | 60 | 60 | |
| Max Aggregate Size (mm) | 60/80 | 60/80 | 60/80 | 60/80 | |
| Total Installed Power(kW) | 105 | 145 | 210 | 280 | |
| Total Weight (T) | 50 | 60 | 80 | 110 | |
| Size (m) (L×W×H) | 28.5×10.6×18.8 | 58.6×12.4×18.8 | 60.2×13.7×18.8 | 43.6×24.0×18.8 | |
| Mixing System | Mixer | JS1000 | JS1500 | JS2000 | JS3000 |
| Mixing Motor (kw) | 2×18.5 | 2×30 | 2×37 | 2×55 | |
| Batching System | Batching Machine | PLD1600 | PLD2400 | PLD3200 | PLD4800 |
| Capacity of Storage Hopper (m3) | 4×5 | 4×10 | 4×18 | 4×25 | |
| Weight System | Aggregate Weighing Precision (%) | ±2 | ±2 | ±2 | ±2 |
| Cement Weighing Precision (%) | ±1 | ±1 | ±1 | ±1 | |
| Water Weighing Precision (%) | ±1 | ±1 | ±1 | ±1 | |
| Additive weighing Precision (%) | ±1 | ±1 | ±1 | ±1 |
| Model | YHZS25 | YHZS35 | YHZS50 | YHZS75 | YHZS100 | |
|---|---|---|---|---|---|---|
| Capacity (m3/h) | 25 | 35 | 50 | 75 | 100 | |
| Concrete mixer | Model | JS500 | JS750 | JS1000 | JS1500 | JS2000 |
| Mixing power (kw) | 18.5 | 30 | 18.5×2 | 30×2 | 37×2 | |
| Output per batch (m3) | 0.5 | 0.75 | 1 | 1.5 | 2 | |
| Max. aggregate size | ≤60/80 | ≤60/80 | ≤60/80 | ≤60/80 | ≤60/80 | |
| Aggregate bin (m3) | 2×8 | 2×8 | 4×8 | 4×8 | 4×10 | |
| Walking speed (km/h) | 20 | 20 | 20 | 20 | 20 | |
| Weighing accuracy | Aggregate | 1200±2% | 1800±2% | 2400±2% | 3600±2% | 4800±2% |
| Cement | 300±1% | 450±1% | 600±1% | 800±1% | 1000±1% | |
| Fly ash | / | / | 150±1% | 200±1% | 300±1% | |
| Water | 150±1% | 200±1% | 400±1% | 400±1% | 500±1% | |
| Additive | 20±1% | 20±1% | 30±1% | 30±1% | 40±1% | |
| Discharge height (m) | 3.8 | 3.8 | 4 | 4 | 4 | |
| Total power (kw) | 40 | 55 | 75 | 105 | 135 | |
